Product Description:

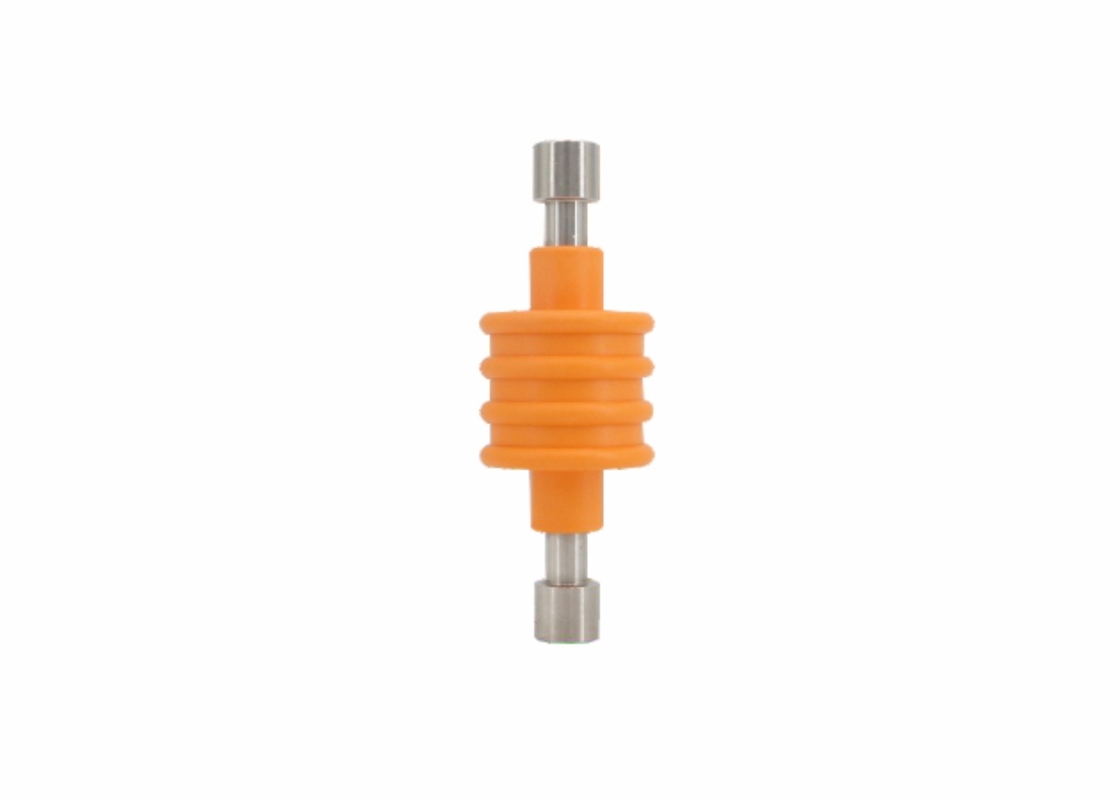

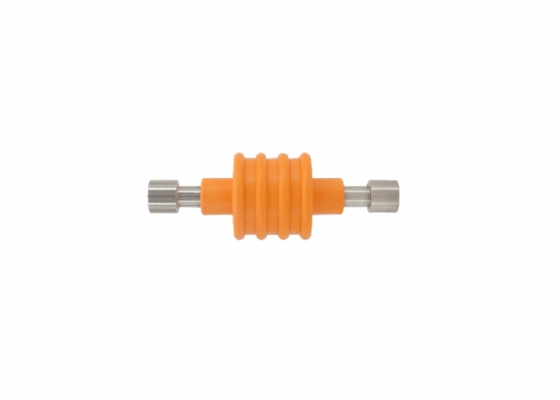

Isolating spark gap for indirect equipotential bonding
Accessories for lightning current absorbing connection
The isolating spark gap ensures lightning protection equipotential bonding and safely discharges overvoltages.
Technical Parameters:
| Specification |
BR-ISG-100 |
| Nominal discharge current (8/20μs) In |
100kA |
| Lightning impulse current (10/350μs) Iimp |
100kA |
| 100% Lightning impulse sparkover voltage Uas |
≤1.5kV |
| Rated power frequency withstand voltage |
≤250V |
| Operating temperature range ϑ |
-40°C~+80°C |
| Length of enclosure L |
130mm |
| Diameter of enclosure D |
39mm |
| Enclosure material |
Thermoplastic, UL94-V0 |
| Connection |
Rd 10mm
|
| Material (connection) |
Steel
|
| Protection level |
IP67
|
Dimension:
Features:
- Iimp: 100kA
- Item: Isolating Spark Gap
- Printing: As Your Requests
- Design: OEM.ODM Designs
- Warranty: 5 Years
Applications:
For indirect connection/grounding of operationally isolated system parts in the event of lightning
Protects personnel against shock hazards during electrical faults on the high voltage side.
FAQ:
Q: What is the brand name of this product?
A: The brand name of this product is BRITEC.
Q: What is the model number of this product?
A: The model number of this product is BR-ISG-100.
Q: Where is this product manufactured?
A: This product is manufactured in China.
Q: What certification does this product have?
A: This product is certified with ISO9001.
Q: What is the minimum order quantity for this product?
A: The minimum order quantity for this product is 100 PCS.
